Architecture

Early container orchestration with software-defined overlay networks and union filesystem layering.

Case study

10XLabs Container Platform

Pioneering container orchestration platform from 2011-2012 that predated Docker by implementing software-defined overlay networks, union filesystem layering, and sub-second provisioning - achieving 375-2000x speedup over traditional VMs.

Historical Context

The Problem (2011)

Traditional Infrastructure:

• VM provisioning: 10-30 minutes
• Resource overhead: 500MB-2GB RAM per VM
• Slow boot times, heavy hypervisor layers
• No dynamic networking between instances

Existing Alternatives:

• OpenVZ/Virtuozzo: Commercial, limited adoption
• LXC: Basic container primitives, no orchestration
• Solaris Zones: Platform-locked, expensive
• VMware ESXi: Traditional VMs, slow provisioning

What was missing:

• Fast, lightweight application isolation
• Software-defined networking for containers
• Layered filesystem for efficient storage
• Orchestration and management tooling

The Innovation (2011-2012)

10XLabs built a complete container platform 1+ years before Docker (released March 2013), featuring:

• Union Filesystem Layering: Copy-on-write for instant provisioning
• Software-Defined Overlay Networks: Custom network topologies for containers
• Sub-Second Provisioning: 375-2000x faster than VMs
• Resource Isolation: cgroups + namespaces for secure multi-tenancy
• Orchestration APIs: RESTful management interface

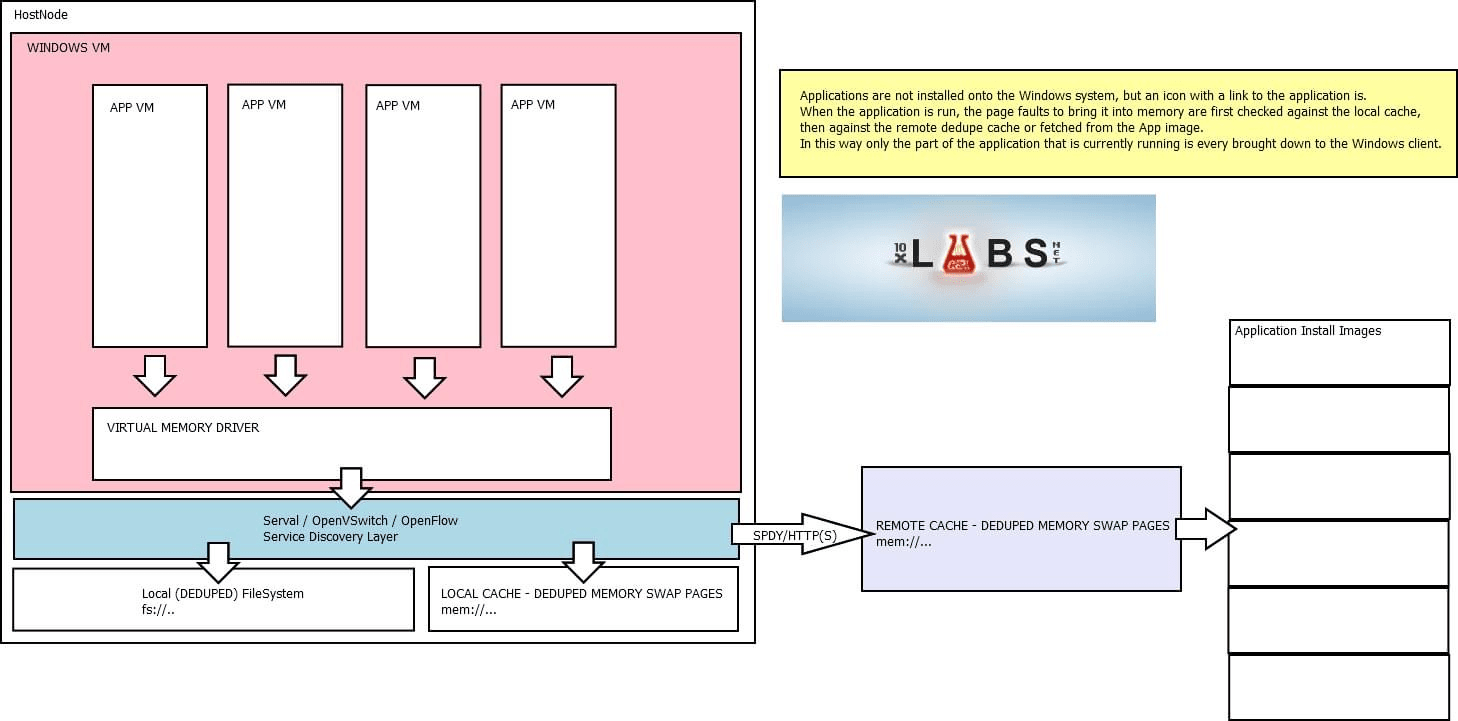

Architecture Overview

graph TB
    subgraph "Management Layer"
        API[REST API
Container Management]
        ORCH[Orchestrator
Placement + Scheduling]

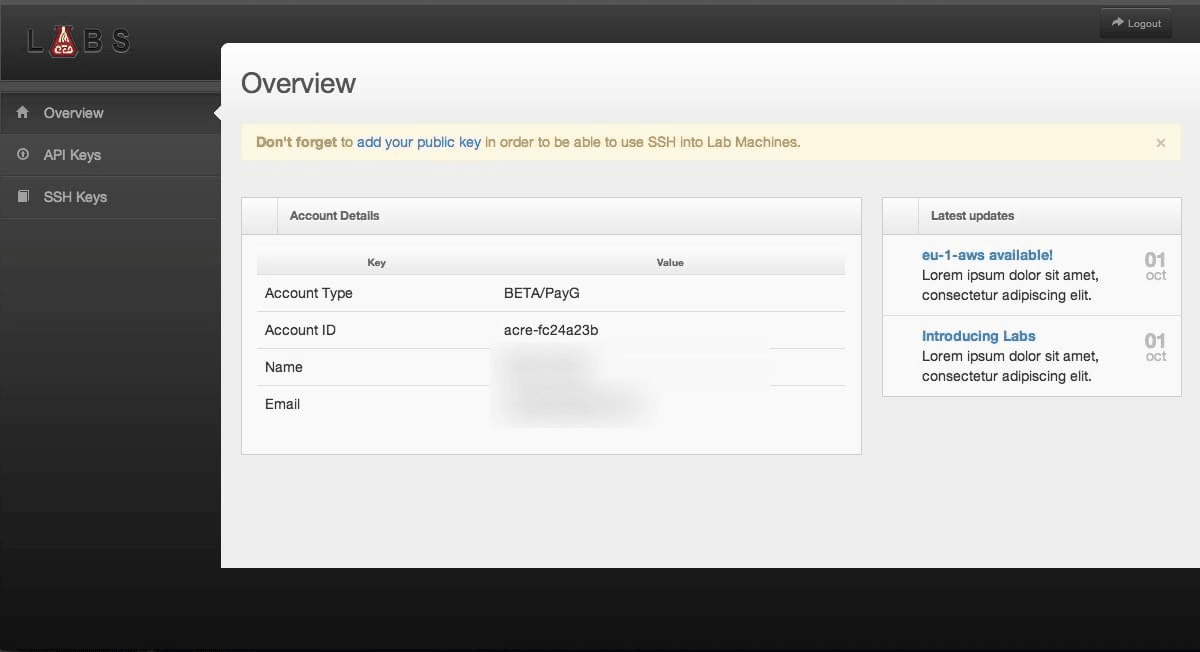

        UI[Web UI
Dashboard]
    end

    subgraph "Container Runtime"
        CG[cgroups
Resource Limits]
        NS[namespaces
Process Isolation]
        UFS[Union FS
Layered Storage]
    end

    subgraph "Networking Layer"
        SDN[Software-Defined Network
Overlay]
        VLAN[Virtual Networks
Per-Container]
        FW[Firewall
Security Groups]
    end

    subgraph "Host Cluster"
        H1[Host 1
10+ Containers]
        H2[Host 2
10+ Containers]
        H3[Host 3
10+ Containers]
    end

    API --> ORCH
    UI --> API
    ORCH --> CG
    ORCH --> NS
    ORCH --> UFS
    ORCH --> SDN
    SDN --> VLAN
    VLAN --> FW
    CG --> H1
    NS --> H1
    UFS --> H1
    CG --> H2
    NS --> H2
    UFS --> H2
    CG --> H3
    NS --> H3
    UFS --> H3

    style SDN fill:#4f46e5
    style UFS fill:#dc2626
    style ORCH fill:#059669

Core Technologies

1. Linux Container Primitives

cgroups (Control Groups):

# Create cgroup for container
cgcreate -g cpu,memory:container-1234

# Set CPU limit (50% of 1 core)
cgset -r cpu.cfs_quota_us=50000 container-1234
cgset -r cpu.cfs_period_us=100000 container-1234

# Set memory limit (512 MB)
cgset -r memory.limit_in_bytes=536870912 container-1234

# Run process in cgroup
cgexec -g cpu,memory:container-1234 /app/process

namespaces (Process Isolation):

// Create isolated container namespaces
int clone_flags =
    CLONE_NEWUTS |   // Hostname
    CLONE_NEWPID |   // Process IDs
    CLONE_NEWNET |   // Network stack
    CLONE_NEWNS |    // Filesystem mounts
    CLONE_NEWIPC;    // IPC objects

// Clone process into new namespaces
pid = clone(container_init, stack, clone_flags, &config);

Namespace Types:

• PID: Each container sees its own process tree (PID 1)
• NET: Isolated network stack (interfaces, routing, iptables)
• MNT: Private filesystem mount points
• UTS: Separate hostname and domain name
• IPC: Isolated message queues and semaphores

2. Union Filesystem (Layered Storage)

AUFS (Advanced Multi-Layered Unification Filesystem):

Container Filesystem Stack:
┌──────────────────────────────┐
│ Writable Layer (Container)   │ ← Changes persist here
├──────────────────────────────┤
│ App Layer (nginx)            │ ← Read-only
├──────────────────────────────┤
│ Runtime Layer (Python 3.8)   │ ← Read-only
├──────────────────────────────┤
│ Base Layer (Ubuntu 20.04)    │ ← Read-only
└──────────────────────────────┘

Benefits:

• Fast Provisioning: Only writable layer created per container (~1 second)
• Storage Efficiency: Shared base layers across containers
• Copy-on-Write: Files copied to writable layer only when modified
• Instant Rollback: Discard writable layer to reset container

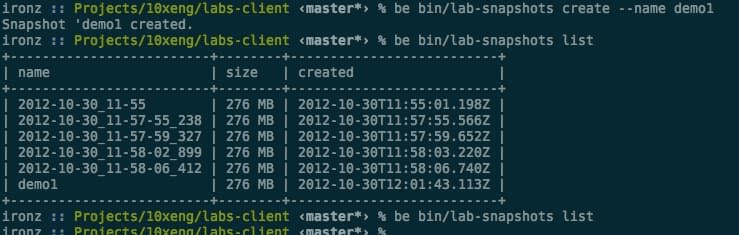

Implementation:

# Mount union filesystem for container
mount -t aufs -o dirs=/containers/cont-1234=rw:/images/app=ro:/images/base=ro \
  none /containers/cont-1234/rootfs

# Container sees unified view
ls /containers/cont-1234/rootfs
# → Contains: /bin, /usr, /app (merged from layers)

# Modifications only affect writable layer
echo "data" > /containers/cont-1234/rootfs/app/output.txt
# → File written to /containers/cont-1234/output.txt
# → Base layers remain unchanged

3. Software-Defined Networking (SDN)

Overlay Network Architecture:

Physical Network:
  Host A (10.0.1.10) ←───────→ Host B (10.0.1.20)

Virtual Networks:
  Network 1 (172.16.0.0/24):
    Container A1 (172.16.0.10) ←──→ Container B1 (172.16.0.20)

  Network 2 (172.17.0.0/24):
    Container A2 (172.17.0.10) ←──→ Container B2 (172.17.0.20)

VXLAN Tunneling:

# Create VXLAN interface for virtual network
ip link add vxlan100 type vxlan \
  id 100 \
  dstport 4789 \
  local 10.0.1.10 \
  dev eth0

# Attach container to VXLAN network
ip link add veth-cont1 type veth peer name veth-host1
ip link set veth-cont1 netns container-1234
ip link set veth-host1 master vxlan100

# Container now on overlay network
# Can communicate with containers on other hosts

Network Features:

• Isolation: Each virtual network fully isolated (Layer 2 separation)
• Multi-Tenancy: Multiple customers on same hardware with network isolation

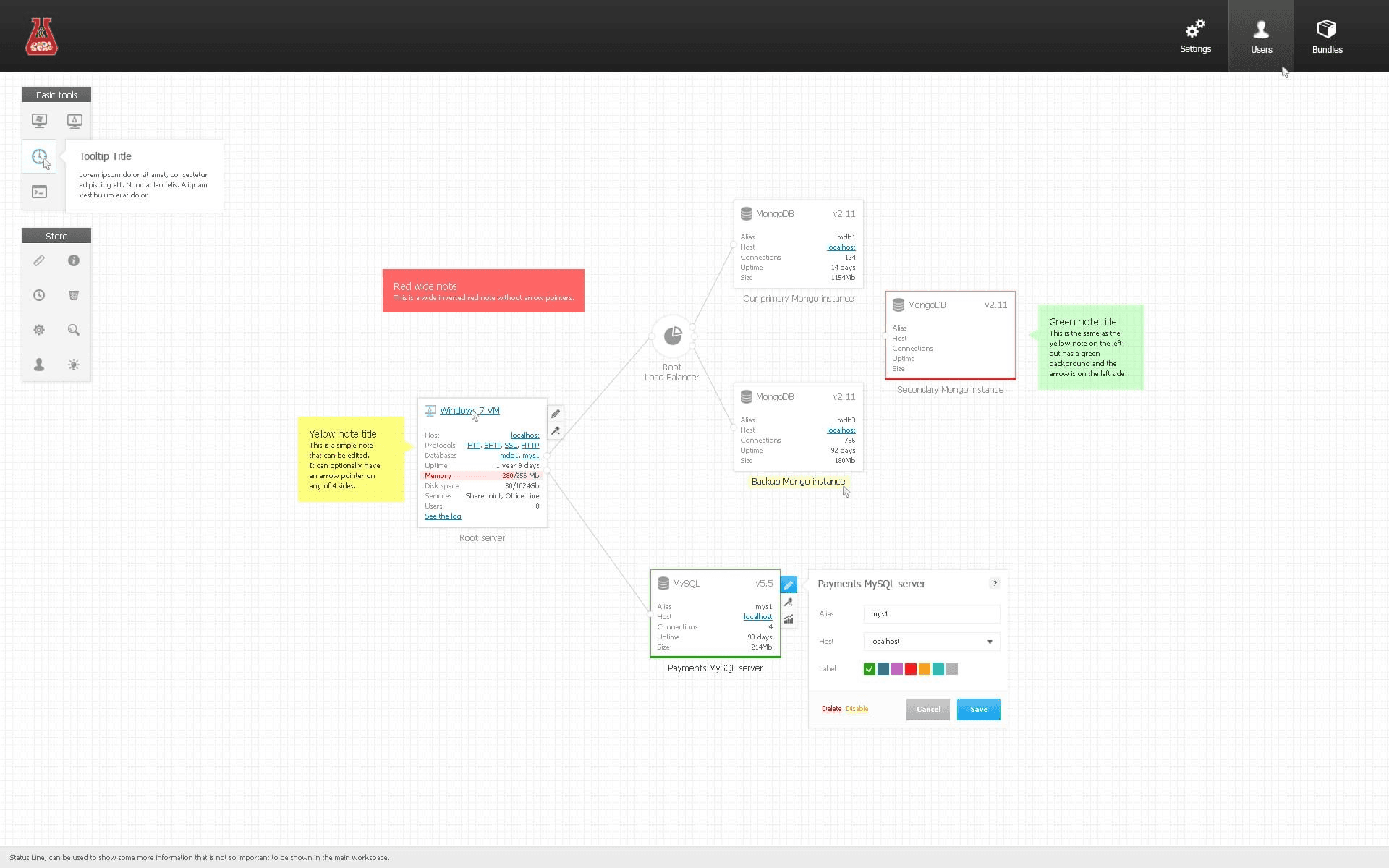

• Dynamic Topology: Create/destroy networks via API
• Security Groups: Firewall rules per container
• Load Balancing: Distribute traffic across container replicas

4. Container Orchestration

API-Driven Management:

# Create container via REST API
POST /api/containers
{
  "image": "myapp:v1.2",
  "cpu": 1.0,
  "memory": "512MB",
  "network": "production-network",
  "ports": [{"host": 8080, "container": 80}],
  "environment": {
    "DB_HOST": "postgres.internal",
    "API_KEY": "secret"
  }
}

# Response:
{
  "id": "cont-abc123",
  "status": "running",
  "ip": "172.16.0.45",
  "provisioned_in": "1.2 seconds"
}

Scheduler Features:

• Bin Packing: Efficient resource utilization across hosts
• Affinity Rules: Place related containers on same host
• Anti-Affinity: Spread replicas for high availability
• Resource Limits: Enforce CPU/memory quotas
• Health Checks: Automatic restart of failed containers

Performance Metrics

Provisioning Speed Comparison

Example Workflow:

VM Provisioning (20 minutes):
├─ Image download: 5 min
├─ Disk allocation: 2 min
├─ Boot kernel: 1 min
├─ Init services: 5 min
├─ App startup: 7 min
└─ Total: 20 minutes

Container Provisioning (1 second):
├─ Layer check: 0.1s (already cached)
├─ Namespace create: 0.2s
├─ Network setup: 0.3s
├─ Process start: 0.4s
└─ Total: 1 second

Resource Efficiency

Key Features

Sub-Second Provisioning

• Union filesystem: No full disk copy needed
• Shared base layers: Instant container creation
• Lightweight isolation: No hypervisor overhead
• Fast networking: Software-defined overlay

Software-Defined Networking

• VXLAN overlays: Cross-host container communication
• Virtual networks: Isolated Layer 2 segments
• Dynamic routing: Automatic service discovery
• Security groups: Per-container firewall rules

Multi-Tenancy

• Resource isolation: cgroups enforce limits
• Network isolation: Separate virtual networks per tenant
• Storage isolation: Private writable layers

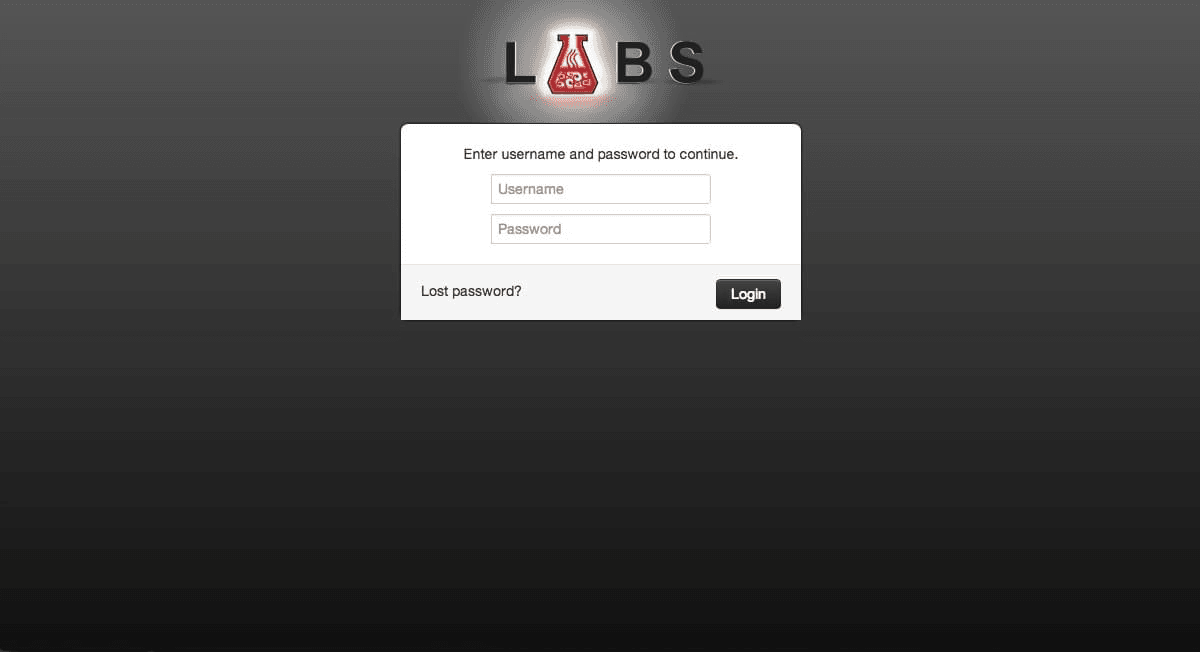

• API authentication: Role-based access control

Developer Experience

• Fast Iteration: Rebuild and deploy in seconds
• Consistent Environments: Same container dev to prod
• Easy Rollback: Discard writable layer to reset
• APIs for Automation: RESTful container management

Historical Significance

Timeline

2011-2012: 10XLabs Container Platform

• Union filesystem layering (AUFS)
• Software-defined overlay networks (VXLAN)
• cgroups + namespaces orchestration
• RESTful management APIs
• Sub-second provisioning

March 2013: Docker Released

• Similar architecture (cgroups, namespaces, AUFS)
• Image format and registry standardization
• Developer-friendly CLI and Dockerfile
• Broad ecosystem and adoption

2014+: Container Ecosystem Explosion

• Kubernetes (2014): Container orchestration
• Container runtimes: containerd, CRI-O
• OCI standards: Image and runtime specs
• Cloud-native movement

What 10XLabs Got Right

1. Union Filesystem: Recognized layering as key to fast provisioning
2. Overlay Networking: Solved cross-host communication early
3. API-First: RESTful management enabled automation
4. Resource Isolation: cgroups + namespaces for security

What Docker Improved

1. Image Format: Standardized, portable container images
2. Registry: Central hub for sharing images (Docker Hub)
3. Dockerfile: Declarative build process
4. Ecosystem: Developer tools, documentation, community

Technical Highlights

• Pre-Docker Innovation: Built 1+ year before Docker's release
• 375-2000x Speedup: Massive improvement over VM provisioning
• Software-Defined Networking: Early adoption of overlay networks
• Union Filesystem: Recognized key to container efficiency
• Complete Platform: Orchestration, networking, storage, APIs

Use Cases (2011-2012)

1. Web Application Hosting

Rapid provisioning for customer applications with per-customer network isolation.

2. Development Environments

Instant spin-up of dev/test environments matching production.

3. CI/CD Pipelines

Fast build/test cycles with isolated container environments.

4. Multi-Tenant SaaS

Resource and network isolation for multiple customers on shared infrastructure.

Lessons Learned

What Worked:

• Container technology was ready (cgroups, namespaces stable in Linux 3.x)
• Union filesystem dramatically improved provisioning speed
• Overlay networking solved multi-host communication
• API-driven management enabled automation

What Was Hard:

• Image distribution: No standardized registry
• Ecosystem: Lacked Docker's developer tools and community
• Marketing: Hard to explain "better than VMs" to market
• Timing: Market not yet ready (pre-DevOps movement)

If Built Today:

• Would use OCI standards for image format
• Would integrate with Kubernetes for orchestration
• Would leverage containerd/CRI-O runtimes
• Would adopt Docker-compatible CLI for familiarity

Legacy & Impact

Contributions to Container Ecosystem:

• Validated union filesystem approach before Docker
• Proved software-defined networking for containers
• Demonstrated 100x+ speedup potential
• Informed later container platform designs

Technical Learnings:

• cgroups + namespaces sufficient for isolation
• Layered storage key to provisioning speed
• Overlay networks solve cross-host communication
• API-first design enables automation

Status

Historical invention (2011-2012) that pioneered key container technologies later popularized by Docker and Kubernetes. Demonstrated feasibility of sub-second provisioning with 375-2000x speedup over traditional VMs.

Part of MacLeod Labs DevOps & Infrastructure Portfolio

References

• Linux cgroups: https://www.kernel.org/doc/Documentation/cgroup-v1/cgroups.txt
• Linux namespaces: https://man7.org/linux/man-pages/man7/namespaces.7.html
• AUFS: http://aufs.sourceforge.net/
• VXLAN RFC 7348: https://datatracker.ietf.org/doc/html/rfc7348
• Docker announcement (2013): https://www.docker.com/blog/the-future-of-linux-containers/
